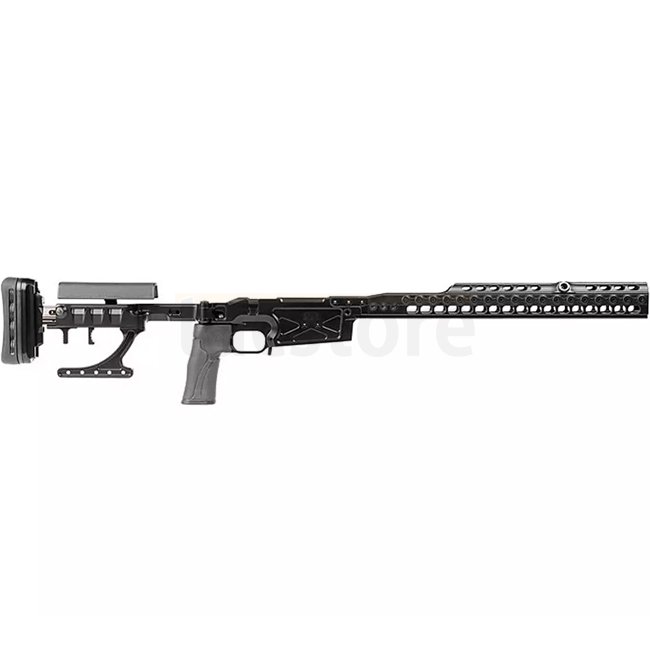

Spuhr CH000022 Chassis for Remington 700 LA, Black, 16" HBAR

Overview

The Spuhr CH000022 is a modular chassis from the Spuhr® Ideal Chassis System™ (SICS™) series, designed to enhance accuracy by providing rigid support for the action and barrel. Optimized for Remington 700 Long Actions, this chassis offers numerous features for demanding shooters.

Main Features

• Construction: Aircraft-grade aluminum alloy ensures optimal durability and lightweight performance.
• Folding Stock Assembly: Features an adjustable locking mechanism to ensure a solid lockup, facilitating transport and storage.
• Quick Adjustments: Length of pull (LOP) adjustable by 50 mm (1.97") and recoil pad height by 32 mm (1.25"), tool-free and without play.
• Adjustable Cheek Piece: Height and length adjustments for optimal eye alignment.
• Customizable Pistol Grip: Proprietary adjustable grip with an 8 mm (0.32") length adjustment, AR-compatible.
• 16" HBAR Forend with Spuhr™ Interface: Designed for bull barrels with profiles exceeding a Heavy Varmint profile, up to a maximum diameter of 32 mm (1.25"). Integrates an ARCA Swiss rail and QD sling cups; does not have Spuhr Interfaces™ along the top of the forend.
• Magazine Compatibility: AICS-pattern magwell.
• Integrated Barricade Stop: Provides increased stability during shooting.

Technical Specifications

• Overall Length: 993 mm (39.1") deployed, 703 mm (27.7") folded.
• Length of Pull (LOP): Minimum 330 mm (13").
• Width: 48.5 mm (1.9").
• Height: 180 mm (7.1").
• Weight: To be determined.
• Forend Length: 406 mm (16.0").
• Color: Black anodized.

Compatibility

This chassis is optimized for Remington 700 Long Actions and will also fit most 700 long action clones.

Notes:

• Actions with a 60-degree bolt throw may not allow the stock to be folded over a closed bolt.
• Due to dimensional variances, some recoil lugs may require fitting.
