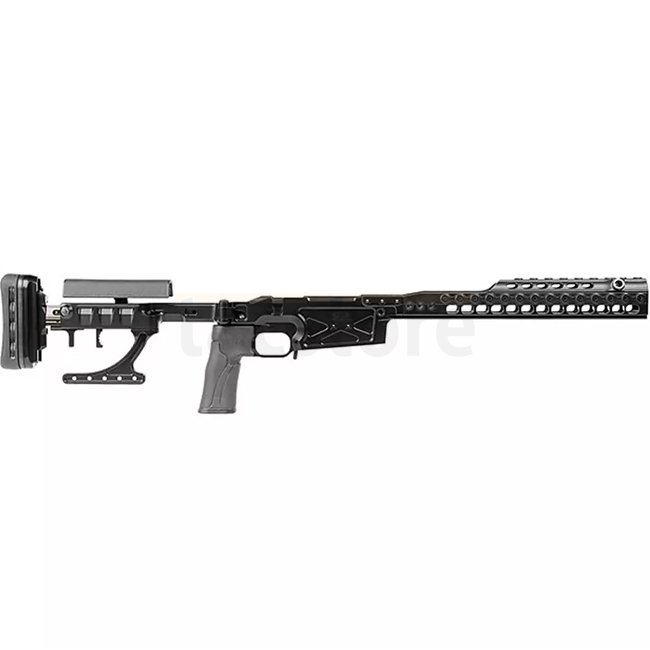

Spuhr CH000013 Chassis for Tikka T3/T3x SA, Black, 13"

Overview

The Spuhr CH000013 is a modular chassis from the Spuhr® Ideal Chassis System™ (SICS™) series, designed to enhance accuracy by providing rigid support for the action and barrel. Optimized for Tikka T3/T3x Short Actions, this chassis offers numerous features for demanding shooters.

Main Features

• Construction: Aircraft-grade aluminum alloy ensures optimal durability and lightweight performance.
• Folding Stock Assembly: Features an adjustable locking mechanism to ensure a solid lockup, facilitating transport and storage.
• Quick Adjustments: Length of pull (LOP) adjustable by 50 mm (1.97") and recoil pad height by 32 mm (1.25"), tool-free and without play.
• Adjustable Cheek Piece: Height and length adjustments for optimal eye alignment.
• Customizable Pistol Grip: Proprietary adjustable grip with an 8 mm (0.32") length adjustment, AR-compatible.
• 13" Forend with Spuhr™ Interface: Integrates an ARCA Swiss rail and QD sling cups, allowing attachment of accessories such as night vision devices and illuminators.
• Magazine Compatibility: AICS-pattern magwell (not compatible with AI AX magazines).
• Integrated Barricade Stop: Provides increased stability during shooting.

Technical Specifications

• Overall Length: 898 mm (35.4") deployed, 608 mm (24.0") folded.
• Length of Pull (LOP): Minimum 330 mm (13").
• Width: 48.5 mm (1.9").
• Height: 180 mm (7.1").
• Weight: 2.31 kg (5.09 lbs).
• Forend Length: 329 mm (13.0").
• Color: Black anodized.

Compatibility

In addition to Tikka T3/T3x Short Actions, the chassis is compatible with most short actions from:

• Impact Precision
• Mack Bros
• Vudoo Gun Works

Notes:

• As the Tikka T3/T3x actions have a 28 mm (1.102") front face diameter, even a straight bull barrel matching the Tikka action’s diameter will fit in the CH110 13" forend (max barrel diameter at the shank: 29 mm (1.14")).
• Due to the narrow magwell in the Tikka T3/T3x actions, some plastic magazines may not seat properly without modification.
• Clearance between the front of the action and the handguard is approximately 130 mm (5.11") and may require the use of a 38 mm (1.5") high mount.
