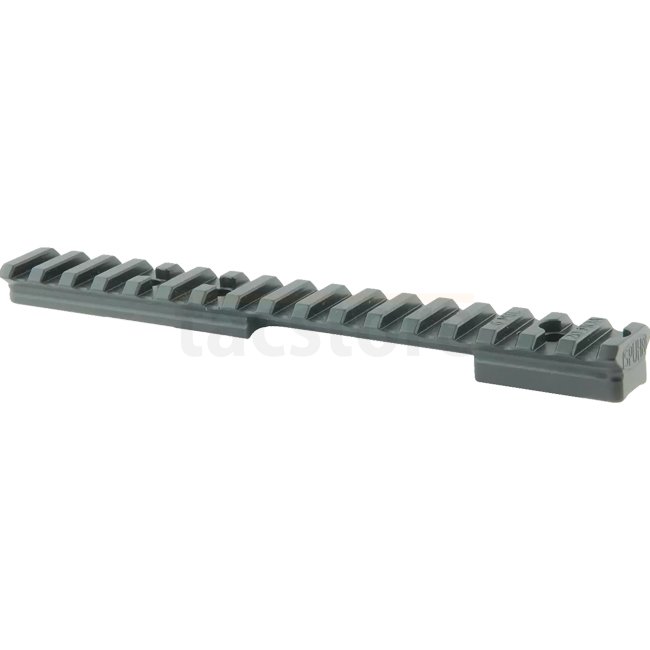

Spuhr R-7602 Remington 700 SA Extended Scope Base 6MIL

Overview

The Spuhr R-7602 is an extended Picatinny Gen2 scope base designed specifically for the Remington 700 Short Action. Made from 7075 T651 aluminum, this base provides a 6 MIL/20.6 MOA tilt, making it ideal for applications requiring additional elevation. Its extended length offers more flexibility for mounting various optics. The base features properly dehorned edges for improved repeatability and a smooth touch. It is compatible with both right- and left-handed actions.

Main Features

• Compatibility: Designed for the Remington 700 Short Action; suitable for both right- and left-handed actions. Note: Not compatible with rifles threaded for 8-40 scope base screws, such as the Bergara Premier Series and the Remington 700 Police 5R.
• Extended Design: Offers increased flexibility for mounting various optics.
• Construction: Precision-machined from 7075 T651 aluminum for superior strength and reduced weight.
• Edge Dehorning: Smoothly finished edges for improved repeatability and a refined touch.
• Mounting Interface: Secure attachment using 6-48x1/4" Torx 10 screws (included). Stainless steel pins are also provided for optional pinning to the action.
• Dimensions: Height: 10mm (0.39 inches); Length: 175mm (6.89 inches).
• Weight: 67g (with screws); add 0.8g (0.03 oz) for pins.

Technical Specifications

• Material: 7075 T651 aluminum
• Finish: Black hardcoat anodized
• Height: 10mm
• Length: 175mm
• Weight: 67g (with screws); add 0.8g for pins
• Tilt: 6 MIL/20.6 MOA

Installation Notes

Apply a torque of 15-18 in/lbs to the Torx 10 screws. Ensure compatibility with your rifle's scope base threading before mounting.
