Spuhr R-7642 Sauer 200 STR Scope Base 6MIL Extended

Overview

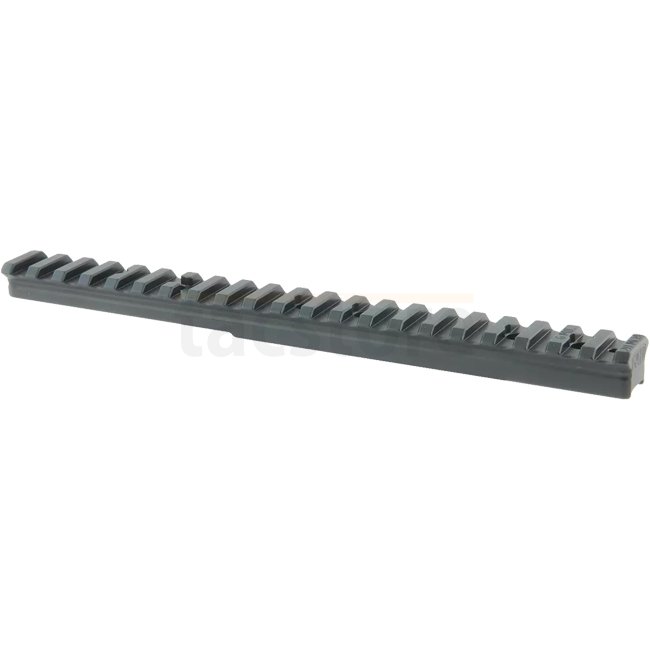

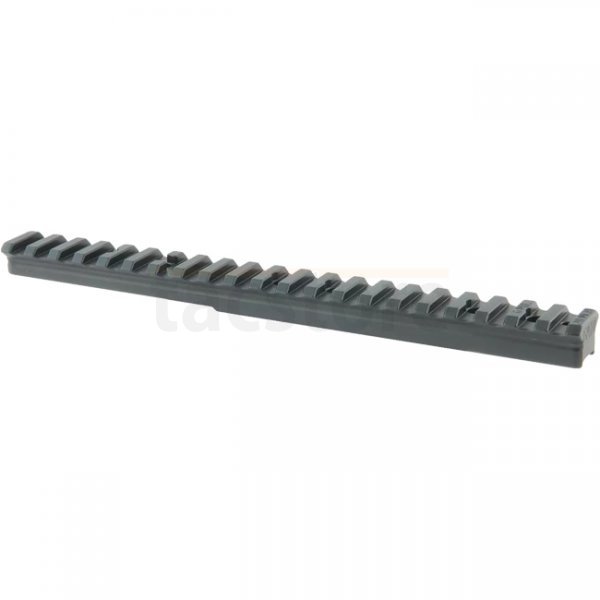

The Spuhr R-7642 is an extended Picatinny Gen2 scope base designed specifically for the Sauer 200 STR rifle. Constructed from high-quality 7075 T651 aluminum, this base provides a 6 MIL/20.6 MOA tilt, making it ideal for applications requiring additional elevation. Its extended length offers increased flexibility for mounting various optics. The design features properly dehorned edges for improved repeatability and a smooth touch. The base is compatible with both right- and left-handed actions. Installation requires drilling and tapping of the receiver.

Main Features

• Compatibility: Designed for the Sauer 200 STR rifle; suitable for both right- and left-handed actions.
• Extended Design: Offers increased flexibility for mounting various optics.
• Construction: Precision-machined from 7075 T651 aluminum for superior strength and reduced weight.
• Edge Dehorning: Smoothly finished edges for improved repeatability and a refined touch.
• Mounting Interface: Secure attachment using 6-48×1/4" Torx 10 screws (included). Stainless steel pins are also provided for optional pinning to the action.
• Dimensions: Height: 15 mm (0.59 inches); Length: 215 mm (8.46 inches).
• Weight: 107 g (with screws); add 1.2 g (0.04 oz) for pins.

Technical Specifications

• Material: 7075 T651 aluminum
• Finish: Black hardcoat anodized
• Height: 15 mm
• Length: 215 mm
• Weight: 107 g (with screws); add 1.2 g for pins
• Tilt: 6 MIL/20.6 MOA

Installation Notes

Installation requires drilling and tapping of the receiver. Apply a torque of 15–18 in/lbs to the Torx 10 screws. Ensure compatibility with your rifle's scope base threading before mounting.
