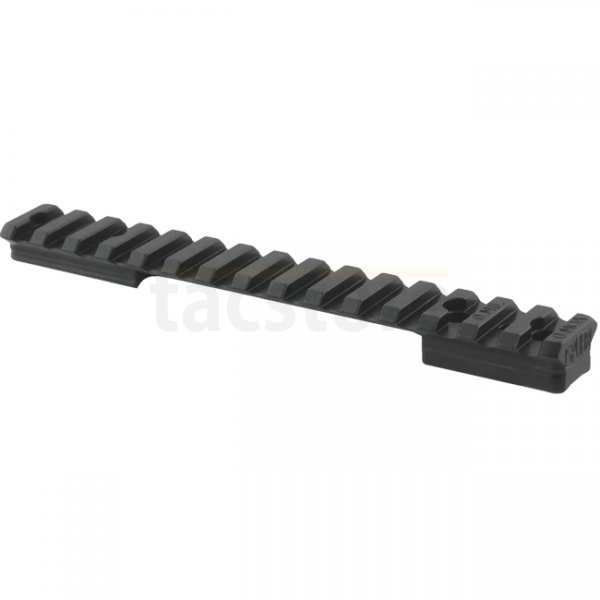

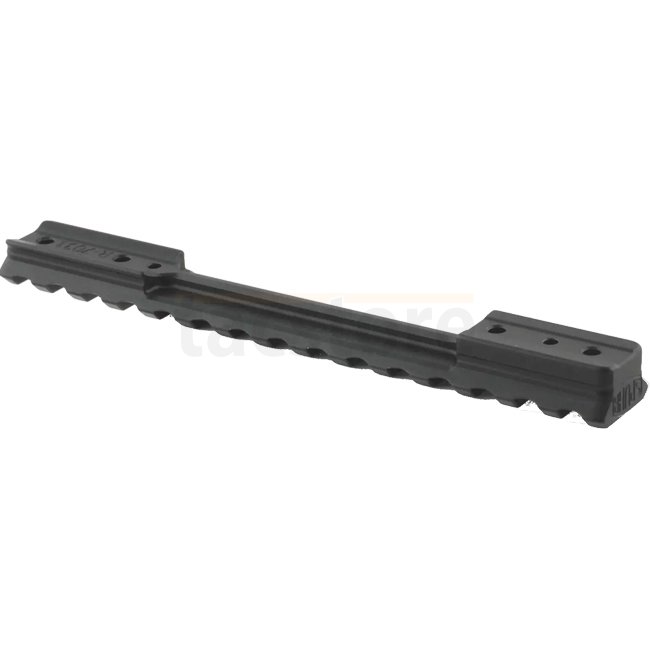

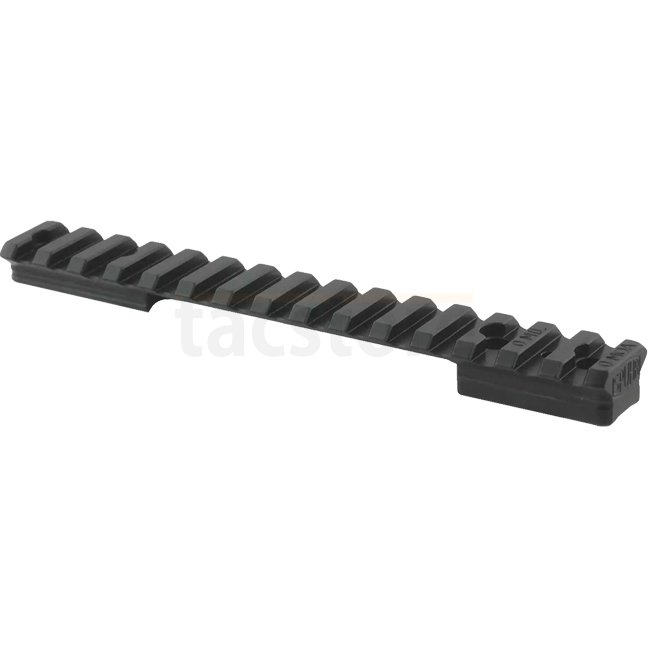

Spuhr R-7031 Winchester 70 Scope Base 0MIL

Overview

The Spuhr R-7031 is a Picatinny Gen2 scope base designed for the Winchester Model 70 rifle. Crafted from durable 7075 T651 aluminum, this base offers a 0 MIL/0 MOA tilt, ensuring a stable and precise mounting platform without additional elevation. Its design features properly dehorned edges for improved repeatability and a smooth touch. The base is compatible with both right- and left-handed actions.

Main Features

• Compatibility: Designed for the Winchester Model 70 rifle; suitable for both right- and left-handed actions.
• Construction: Precision-machined from 7075 T651 aluminum for enhanced strength and reduced weight.
• Edge Dehorning: Smoothly finished edges for improved repeatability and a refined touch.
• Mounting Interface: Secure attachment using 6-48x1/4" Torx 10 screws (included). Stainless steel pins are also provided for optional pinning to the action.
• Dimensions: Height: 10mm (0.39 inches); Length: 155mm (6.1 inches).
• Weight: 52g (with screws).

Technical Specifications

• Material: 7075 T651 aluminum
• Finish: Black hardcoat anodized
• Height: 10mm
• Length: 155mm
• Weight: 52g (with screws)
• Tilt: 0 MIL/0 MOA

Installation Notes

Apply a torque of 15-18 in/lbs to the Torx 10 screws. Ensure compatibility with your rifle's threading before installation.
