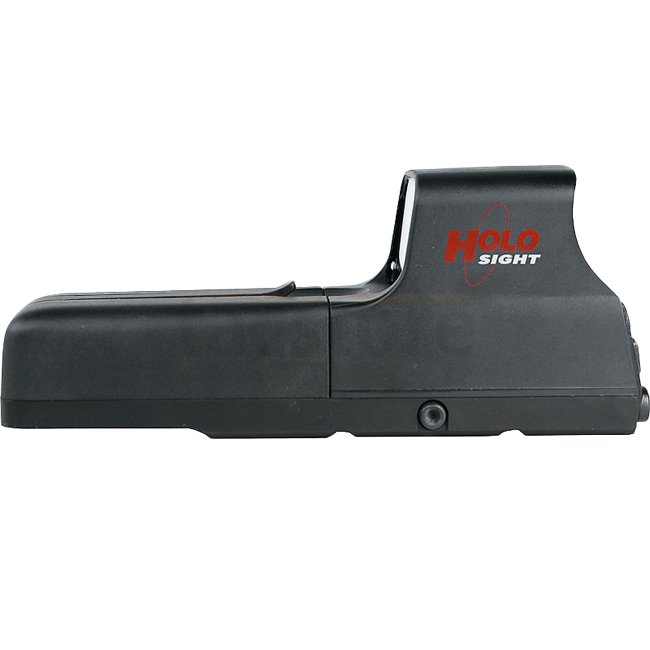

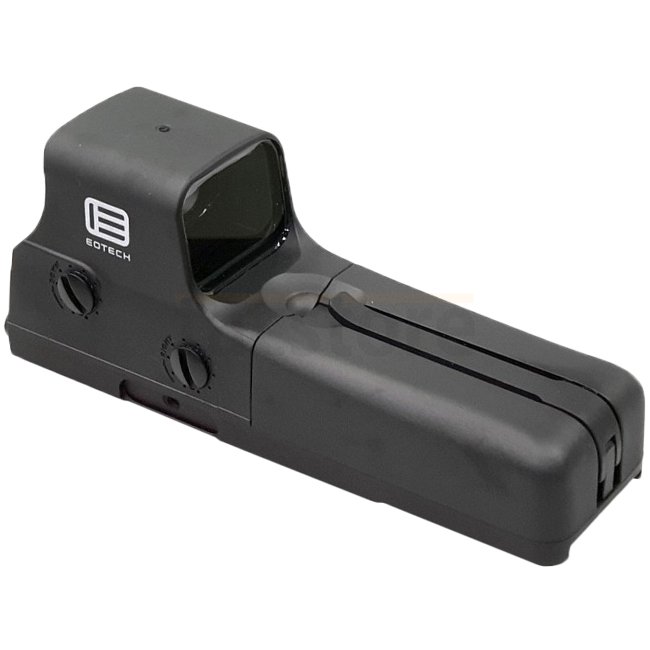

The Eotech 502 is a more affordable solution for sport shooters. In contrast to the 552, the 502 version is not suitable for night vision and the housing is made of polymer, as is the protective cap around the glass. The power supply is ensured with two standard AA batteries.
Operation
• Optics: Transmission holography - parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 5.4"x1.8"x2.25" (137x49x60 mm)
• Weight: 7.4 oz (210 grams)
• Temperature: -40 to 150 F (using AA lithiums); -20 to 140 F (all other battery choices)
• Waterproof: Submersible to 10 ft depth
• Sealing: Fogproof internal optics
• Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1" Picatinny (MIL-STD-1913) or Weaver rail
• Return to Zero: Repeatable to 1 MOA after re-mounting
Heads-Up-Display Window
• Optical Surfaces: Anti-glare coating
• Window Dimensions: 1.20" x 0.85" (30 x 23mm)
• Front Window Material: 1/8" solid glass
• Rear Window Material: Shatter resistant laminate (3/16" thick)
• Field of View (100 yds): 30 yds (28m) at a 4" eye relief
Electrical
• Brightness Adjustment Range: 110,000:1 brightest to lowest
• No Night Vision Compatibility
• Power Source: 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable)
• Battery Life: 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA-alkaline
• Brightness Settings: 20 settings with scrolling feature
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
