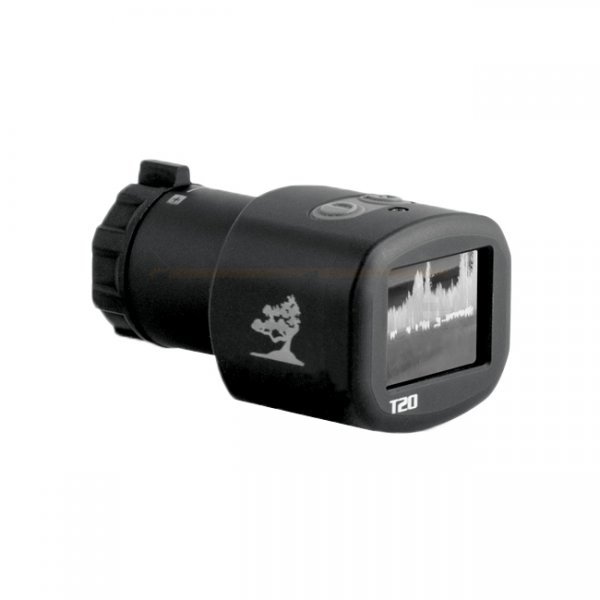

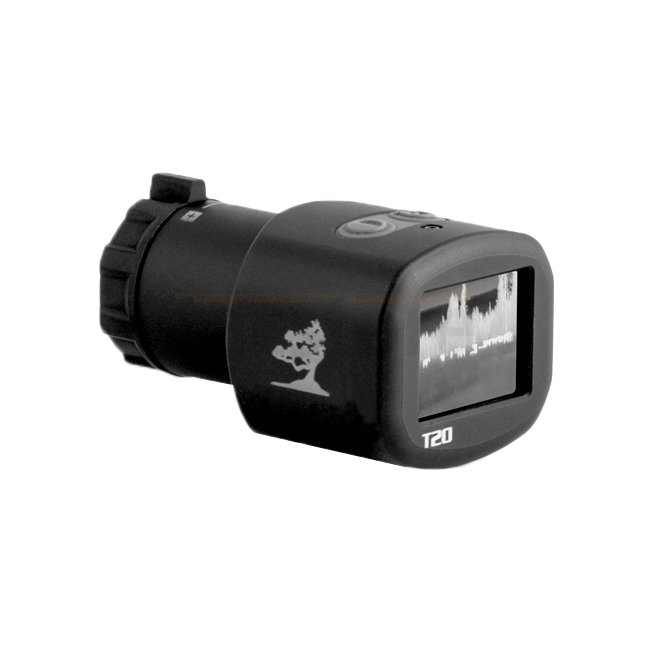

Sector Optics Thermal Imager T 20

The T20 thermal imager offers a unique optical zoom solution in a tiny and rugged package. The T20 can be used in a variety of search operations, firefighting, detection and commercial applications.

• On‑board image enhancement
• Shutter with automatic NUC
• Auto shutdown motion sensor saves battery power
• Multiple display types: white hot / black hot / NV green / color
• Mounting via 30mm mounting ring
• Optical zoom from 3 to 5.5x

Size: 70 mm x 46 mm x 39 mm (2.75” x 1.8” x 1.5”)
Weight: 133 g without battery (not incl.)
Zoom: 3-5.5x Continuous optical zoom with automatic focus
Field-of-View: from 17° to 9°
Min. Focus Distance: 1 m
Spectral Range: 8-14 micron
Power: CR2, 4+ hours of operation
Resolution: 80 × 60 pixels FLIR Lepton 3
Display: 1.3″ OLED
Operating Temp.: -10° to +45° C
Frame Rate / Shutter: 9 Hz with shutter
