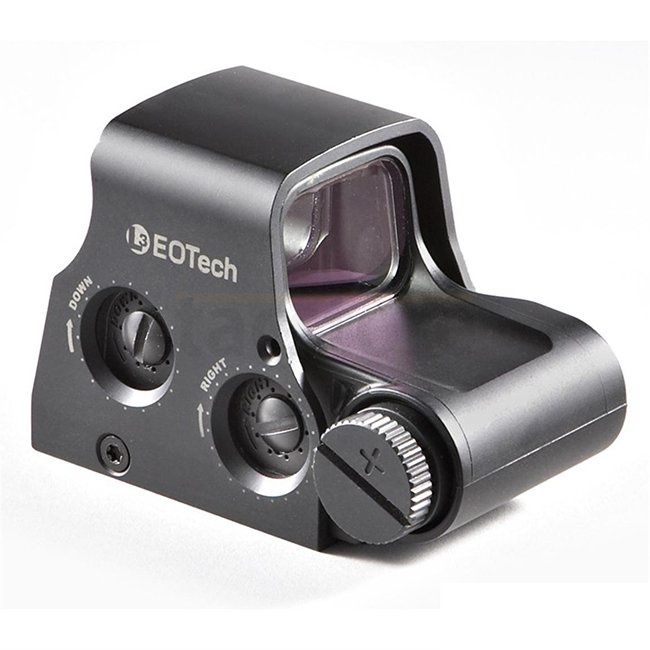

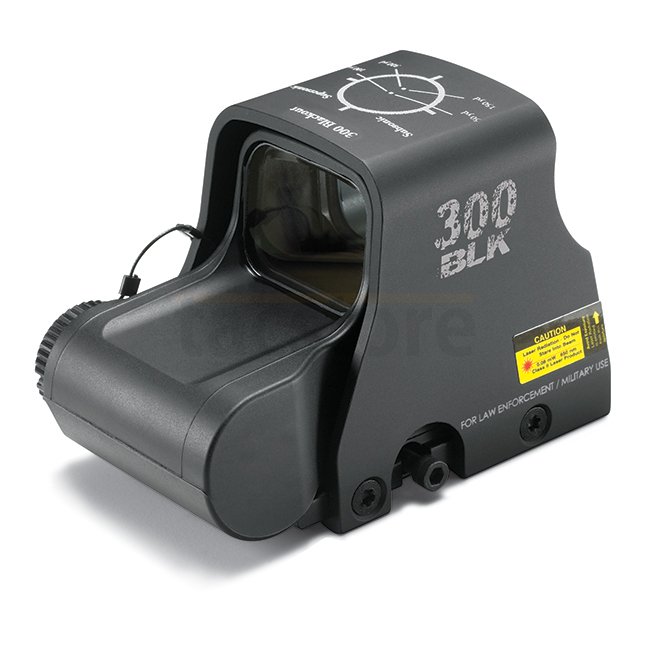

Designed with tactical shooters in mind, the XPS2-300 offers a 2-dot ballistic drop reticle that allows the shooter to zero either subsonic or supersonic rounds in the same reticle pattern. Offered in the XPS2 platform, it is the shortest and lightest HWS sight available. Its size and weight make it convenient for hunters, military and law enforcement officers to carry. The single compact lithium 123 battery configuration opens up more space on the rail for rear iron sights or magnifiers.
Operation
• Optics: Transmission holography
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 3.8”x2.3”x2.9” (96.5 x 58.4 x 73.7mm)
• Weight: 11.2 oz (317.5g)
• Water resistant: Submersible to 33 ft (10m) depth
• Sealing: Fog resistant internal optics
• Color/Finish: Non-reflective black
• Adjustment (per click): Approx. 0.5 MOA (1/2” (12.7mm) at 100 yds (91m)) when zeroing
• Adjustment Range: +/- 40 MOA travel
• Mount: 1” (25.4mm) weaver or MIL-STD 1913 rail
Display Window
• Optical Surfaces: Anti-reflection coating on external surfaces
• Window Dimensions: 1.20” x 0.85” (30 x 23mm)
• Front Window Material: Glass 1/8" (3.17mm) thick
• Rear Window Material: Laminate 3/16” (4.76mm) thick
• Field of View 100 yds (91m): 30 yds (28m) at a 3” eye relief

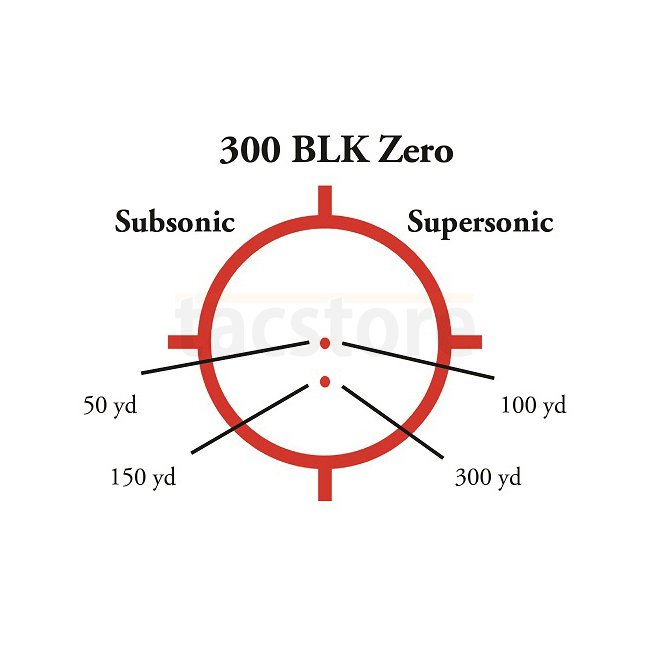

• Reticle: 68moa ring with vertical and horizontal stadia and 2 1 MOA aiming dots
Electrical
• Power Source: 1 x 123 lithium battery
• Battery Life: Approximately 600 continuous hours at nominal setting 12 at room temp.
• Brightness Settings: 20 settings with scrolling feature
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
