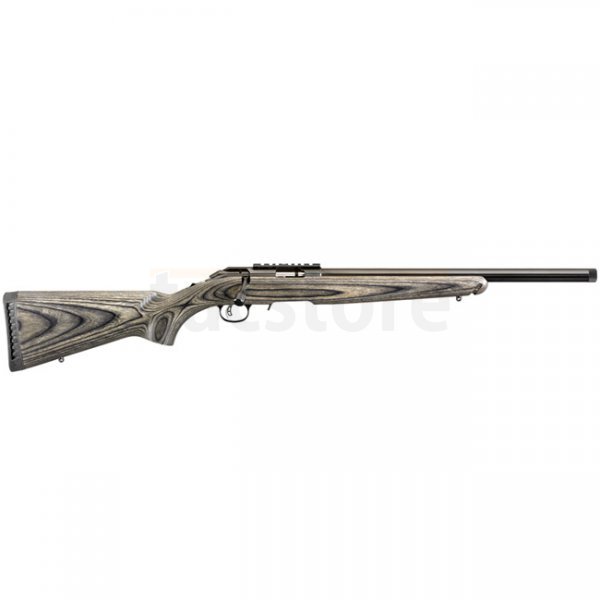

Ruger American Rimfire – Model 8348 – .22 LR

Stability and Precision with Heritage Styling

The Ruger American Rimfire chambered in .22 LR features an 18" cold hammer-forged bull barrel with 1/2"-28 threading and a knurled thread protector, delivering exceptional accuracy and durability. The Satin Blued finish adds to the rifle’s refined performance aesthetic.

Classic Laminate Stock with Practical Enhancements

Equipped with a black laminate stock featuring an Alexander Henry forend, it provides stable support whether using sticks, bipod, or sling. Rubber buttpad and sling swivel studs front and rear further enhance field versatility.

Trigger, Optics & Operation

The rifle includes a BX-1 10-round rotary magazine (accepts all 10/22® magazines), Ruger Marksman Adjustable™ trigger (1360–2270g), Power Bedding™ for precision, and a factory-installed aluminum scope rail. A 60° bolt throw with quick-release mechanism ensures user-friendly cycling and maintenance.

Technical Specifications

• Caliber: .22 LR
• Barrel Length: 457mm
• Thread Pattern: 1/2"-28
• Twist: 1:16" RH
• Capacity: 10
• Magazine Type: BX-1 Rotary (accepts BX-25®, BX-25®x2, BX-15®)
• Weight: 3040g
• Overall Length: 940mm
• Length of Pull: 350mm
• Grooves: 6
• Material: Alloy Steel
• Finish: Satin Blued
• Sights: None – scope base installed
• Includes: One magazine, thread protector, sling swivel studs
