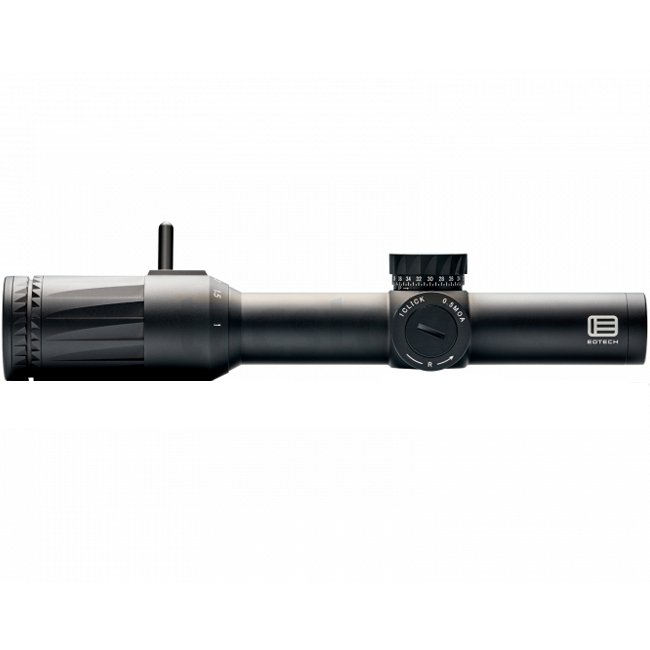

EOTECH Vudu 1‑6×24 FFP Rifle Scope
1–6× First Focal Plane LPVO
Speed and Precision from Close to Mid-Range
The EOTECH Vudu 1‑6×24 FFP features a durable single-piece 30 mm aircraft aluminum tube with a detachable throw lever for quick magnification changes. It includes a low-profile elevation turret with push/pull lock and a capped windage turret to maintain zero integrity. The illuminated, glass-etched reticle resides in the first focal plane for accurate holdovers at any magnification.
Technical Specifications
Optics & Mechanics
• Magnification: 1–6× first focal plane
• Objective Lens: 24 mm
• Tube Diameter: 30 mm
• Eye Relief: 1×: 83–100 mm • 6×: 82–100 mm
• Field of View @100 yd: 1×: 31.2 m • 6×: 5.1 m
• Reticles Available: SR‑1 (MRAD), SR‑2 (MOA), SR‑3 (MOA)
Durability & Adjustments
• Elevation turret: push/pull lock
• Windage turret: capped
• Adjustment per click: 0.25 MOA (SR‑2/SR‑3) or 0.1 MIL (SR‑1)
• Travel: Elevation ±100 MOA / Windage ±80 MOA
• Throw Lever: Included
• Housing: Nitrogen-purged, O-ring sealed (water/fog/shock resistant)
Illumination & Power
• Illuminated Reticle: Yes, 10 brightness levels with auto-off (~2 hrs)
• Battery: 1 × CR2032
Physical & Origin
• Length: 270 mm
• Weight: 570 g
• Origin: Made in Japan
Included in the Box
- Vudu 1‑6×24 FFP Scope
- Throw Lever
- Lens Cleaning Cloth
- Operator & Reticle Manuals
- CR2032 Battery
